Specification parameters
| Type | BL-3D-6800Parameter | |
| Applicable Wire Dia. | Soft material Φ:3.0-8.0mm Hard material Φ:3.0-6.0mm | |
| Bending stroke | 520mm | |
| Number of control Axis | 6 Axis | |
| Total power | 12.2KW | |
| Power Of Roating arm Motor | 2.7KW | |
| Power of wire feeding motor | 4.5KW | |
| Folding motor power | 2.0KW | |
| Lifting motor power | 1.0KW | |
| Power Of wire cutting Motor | 1.0KW | |
| Internal rotation motor power | 1.0KW | |
| Maximum wire feeding speed | 90M／min | |
| Wire feeding accuracy | 300mm±0.1mm | |
| Angle accuracy | 90°±0.2° | |
| Input Power | 380V/50Hz/3Ph | |
| Weight | 3000kg | |
| Machine Size(L*W*H) | 3200×1850×2100mm | |
| Automatic feeder | Maximum load Weight: | 1500KG |
| Diameter of Round Tray | φ1600mm | |
| Input Power | 2.2KW | |
| Weight | 800Kg | |
| Size (L*W*H) | 2100*2100*1300mm | |
Advantage description
1. 6 sets of servo motors independently control the main bending, internal bending, bending lifting, platform lifting, scissors, wire transfer, and wire feeding.
2. High precision wire box gear manufacturing process, full gear transmission and wire transfer structure, faster and more stable speed.
3. Full gear rotary transmission and servo thread cutting structure.
4. 3D high precision single-headed CNC wire bending machine widely used in metal forming processing in fields such as automotive parts, agricultural machinery, aerospace, etc.

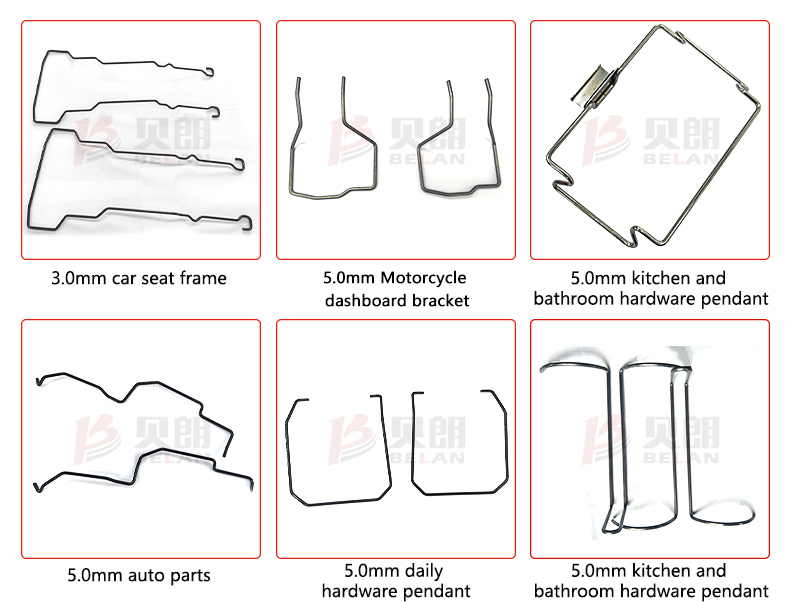

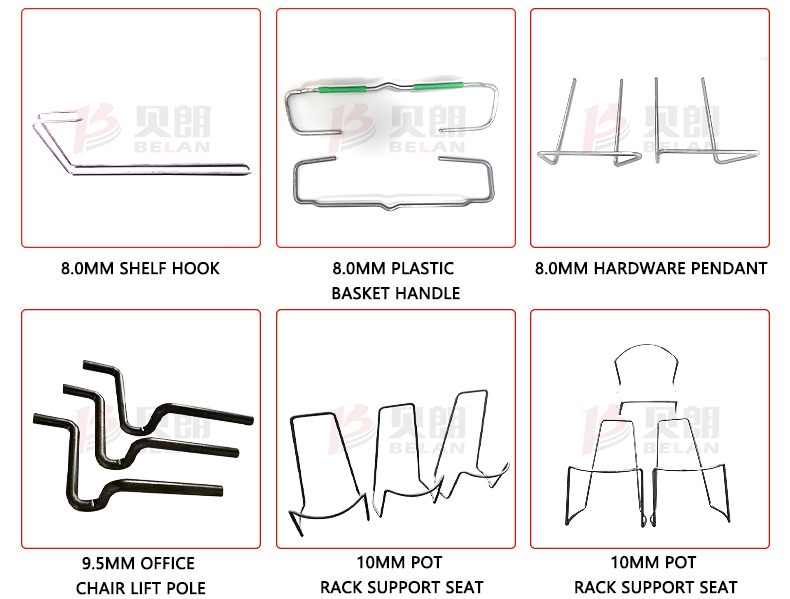

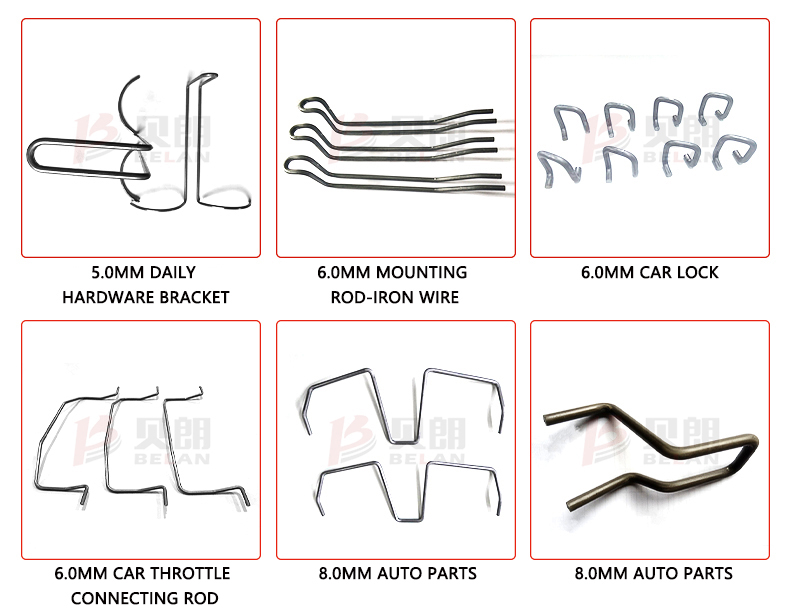

Sample display
